NVIDIA Networking and Nutanix HCI Integration

NVIDIA Networking presents cutting-edge network solutions tailored to optimize data infrastructure and elevate performance. ServerSimply, a leading provider of networking solutions, offers a wide range of Ethernet switches, including Mellanox Ethernet switches. These switches, available through ServerSimply's network infrastructure offerings, provide high-performance, low-latency connectivity for data centers.

By combining the power of NVIDIA Networking's advanced technologies with ServerSimply's Ethernet switches, organizations can build robust and efficient network infrastructures that meet the demands of modern data centers.

Advanced Technologies of NVIDIA Networking

NVIDIA Networking comprises advanced technologies that enrich network capabilities and boost performance. Let's explore key technologies:

a. RDMA (Remote Direct Memory Access): RDMA enables direct memory access between network-connected devices, bypassing the CPU and reducing latency. It enhances network efficiency, benefiting scenarios with large data transfers, distributed storage systems, and parallel computing.

b. GPU Direct: GPU Direct facilitates efficient communication between GPUs and network adapters, accelerating data transmission. It benefits GPU-intensive applications like deep learning, scientific simulations, and high-performance computing.

c. NVIDIA Mellanox Spectrum-Compatible Switches and Adapters: NVIDIA Networking integrates seamlessly with Mellanox Spectrum switches and adapters. These high-performance devices provide low-latency, high-bandwidth connectivity and support advanced features like congestion control, network virtualization, and QoS.

d. Software-Defined Networking (SDN): NVIDIA Networking embraces SDN principles, enabling centralized network management, policy enforcement, and dynamic resource allocation. It offers comprehensive SDN solutions for network programmability and agility.

e. In-Network Computing: In-Network Computing allows data processing within the network, minimizing data movement, reducing latency, and enhancing system performance. It benefits data-intensive workloads, distributed analytics, and real-time AI inferencing.

Virtualization with Nutanix

Nutanix's HCI solutions revolutionize data center operations through virtualization, optimizing resource utilization. Combined with NVIDIA Networking, Nutanix offers a robust platform for virtualized environments, unlocking new possibilities. Let's explore the key elements and advantages:

a. Nutanix: Streamlined Infrastructure Virtualization. Nutanix HCI consolidates compute, storage, and networking resources into a unified platform, simplifying management and enhancing efficiency. It enables flexible virtualized environments with shared resources.

b. Nutanix Architecture: Scalable VM Deployment. Nutanix's architecture supports scalable and highly available VM deployments, optimizing data storage and retrieval. The native hypervisor seamlessly integrates with Nutanix HCI, enhancing virtualization capabilities.

c. Integration of NVIDIA Networking: Optimized Performance. NVIDIA Networking complements Nutanix's virtualization with advanced technologies like RDMA and GPU Direct, improving data transfer efficiency and performance for GPU-accelerated workloads.

d. Network Configuration and Optimization: Fine-tuning for Performance. Optimizing network settings, such as bandwidth allocation and QoS policies, ensures optimal performance for virtualized workloads and GPU-intensive applications.

e. Overcoming Challenges: Deployment and Configuration. Proper planning and collaboration between Nutanix and NVIDIA Networking teams address challenges like network compatibility and security considerations, ensuring a seamless deployment.

Integration of NVIDIA Networking and Nutanix

The integration of NVIDIA Networking and Nutanix combines advanced networking capabilities with hyperconverged infrastructure, enhancing performance and scalability. Let's explore the key aspects:

a. Enhancing Data Infrastructure with NVIDIA Networking: NVIDIA Networking optimizes data transfer, reduces latency, and enhances system performance within Nutanix environments using technologies like RDMA and GPU Direct.

b. Benefits of NVIDIA Networking with Nutanix HCI: This integration offers improved network performance, data transfer efficiency, scalability, and reduced latency, unlocking the full potential of virtualized environments and GPU-accelerated workloads.

c. Configuring and Optimizing Networking: Fine-tuning network settings such as bandwidth allocation and traffic prioritization ensures optimal performance and efficiency.

d. Best Practices for Deployment and Configuration: Adhering to guidelines from NVIDIA and Nutanix, including hardware compatibility and software versions, ensures a smooth deployment and configuration process.

e. Troubleshooting and Issue Resolution: Analyzing network logs, monitoring performance metrics, and collaborating with support teams resolve any issues efficiently, minimizing downtime.

Best Practices for Partitioning Nutanix Clusters to Ensure High Availability and Prevent Cluster Splitting.

In a distributed and resilient infrastructure, ensuring high availability and eliminating the risk of data loss are paramount considerations. When dealing with multiple physical sites or availability zones, it becomes essential to design the Nutanix clusters in a way that guarantees fault tolerance and prevents the possibility of cluster partitioning. By following recommended best practices, such as creating separate Nutanix clusters per availability zone and utilizing appropriate connectivity tools, organizations can achieve robust data and application availability while safeguarding against potential split-brain scenarios.

Leaf-Spine

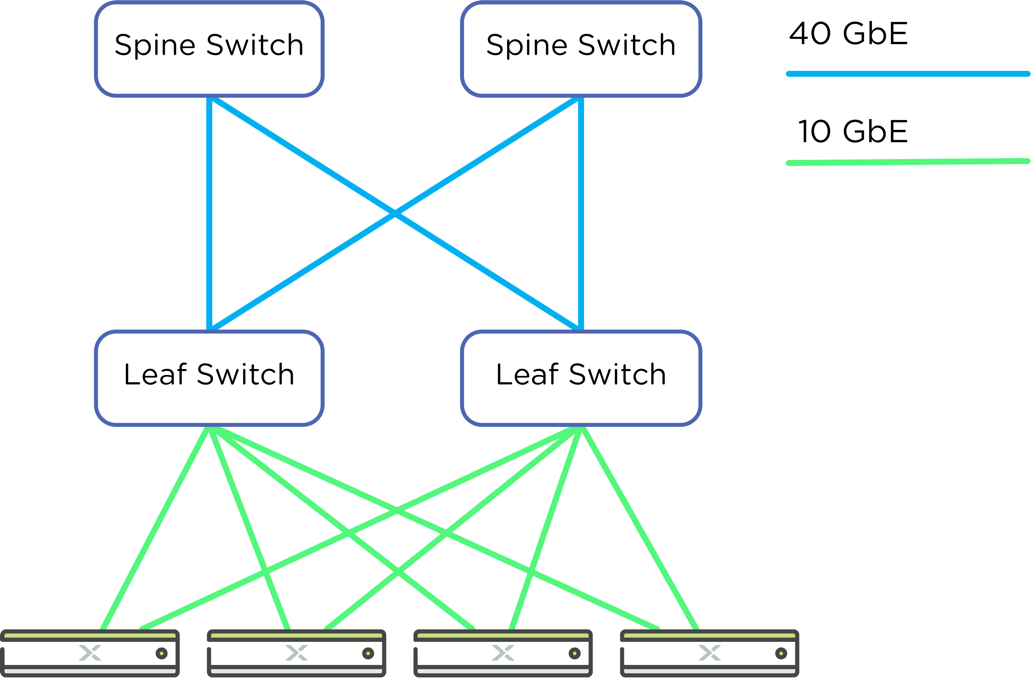

The leaf-spine network architecture has gained popularity in recent datacenter installations due to its simplicity of deployment and scalability. In this design, a minimum of two spine switches and two leaf switches are required. Each leaf switch is connected to every spine switch through uplink ports. Unlike traditional leaf-spine designs, there are no direct connections between the spine switches or between the leaf switches.

To minimize uplink oversubscription, it is advisable to employ higher-speed uplinks compared to the edge ports. If additional uplink capacity is required, spine switches or uplink ports can be easily added to the network.

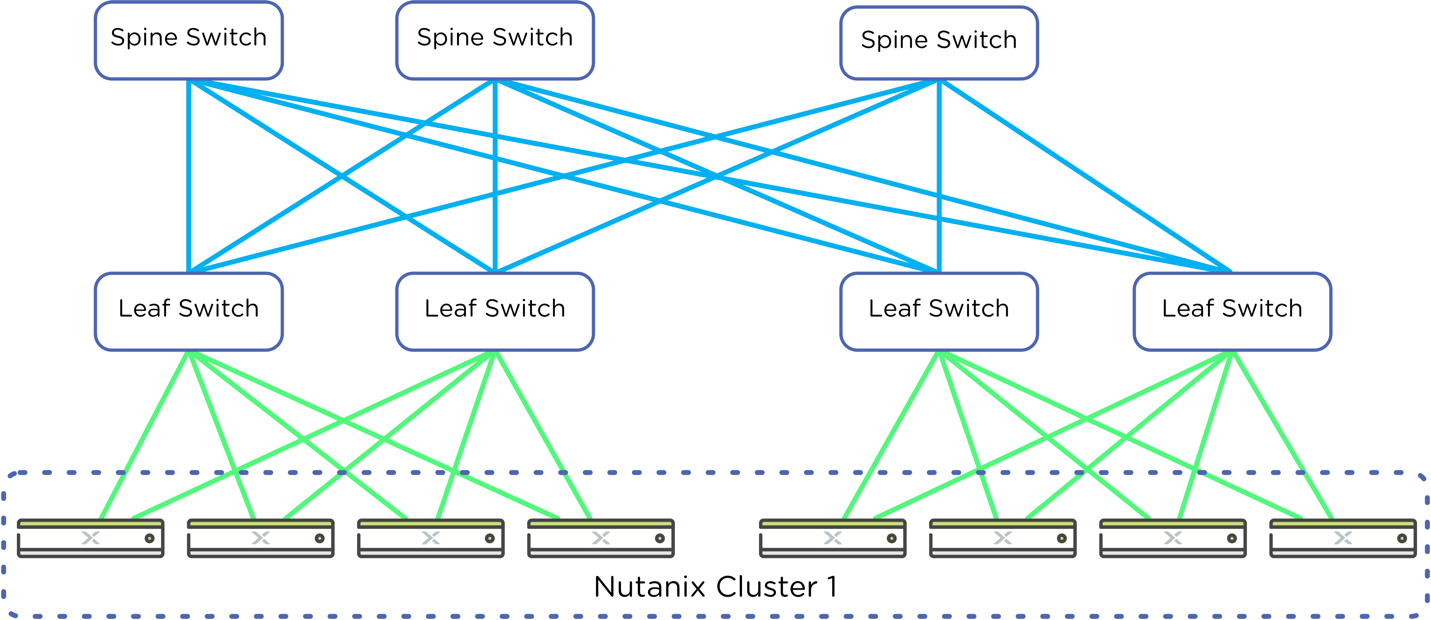

For expanding the leaf-spine network, the inclusion of additional leaf and spine switches is necessary. The advantage of this design is that it allows Nutanix clusters to seamlessly extend across multiple racks while maintaining connectivity to the same switch fabric, as the maximum number of switch hops between any two Nutanix nodes does not exceed three.

Core-Aggregation-Access

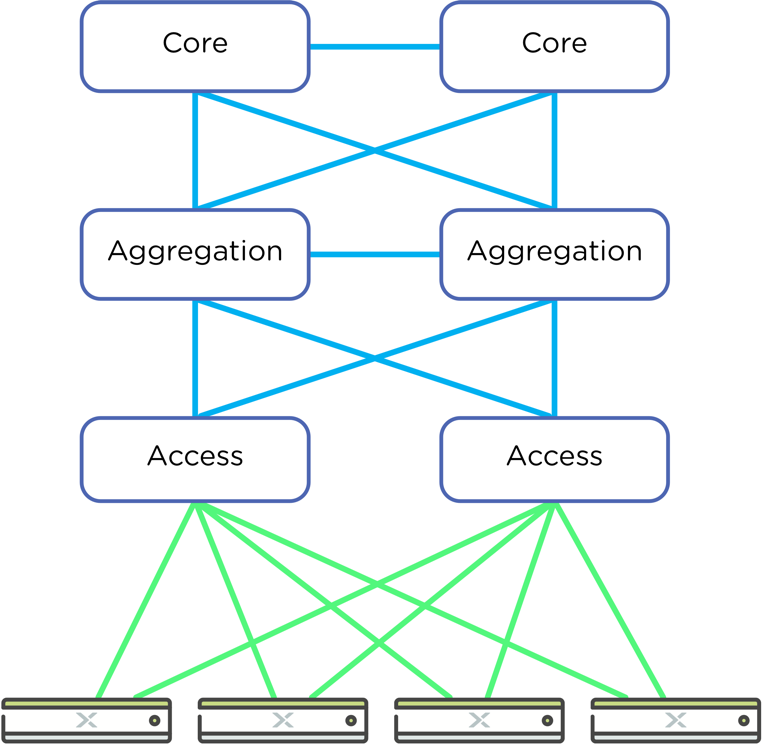

The three-tier (or core-aggregation-access) design is a modular arrangement that provides the flexibility to upgrade and scale individual layers independently. It is essential to ensure that all nodes within a Nutanix cluster are connected to the same aggregation layer to adhere to the three-switch-hop guideline.

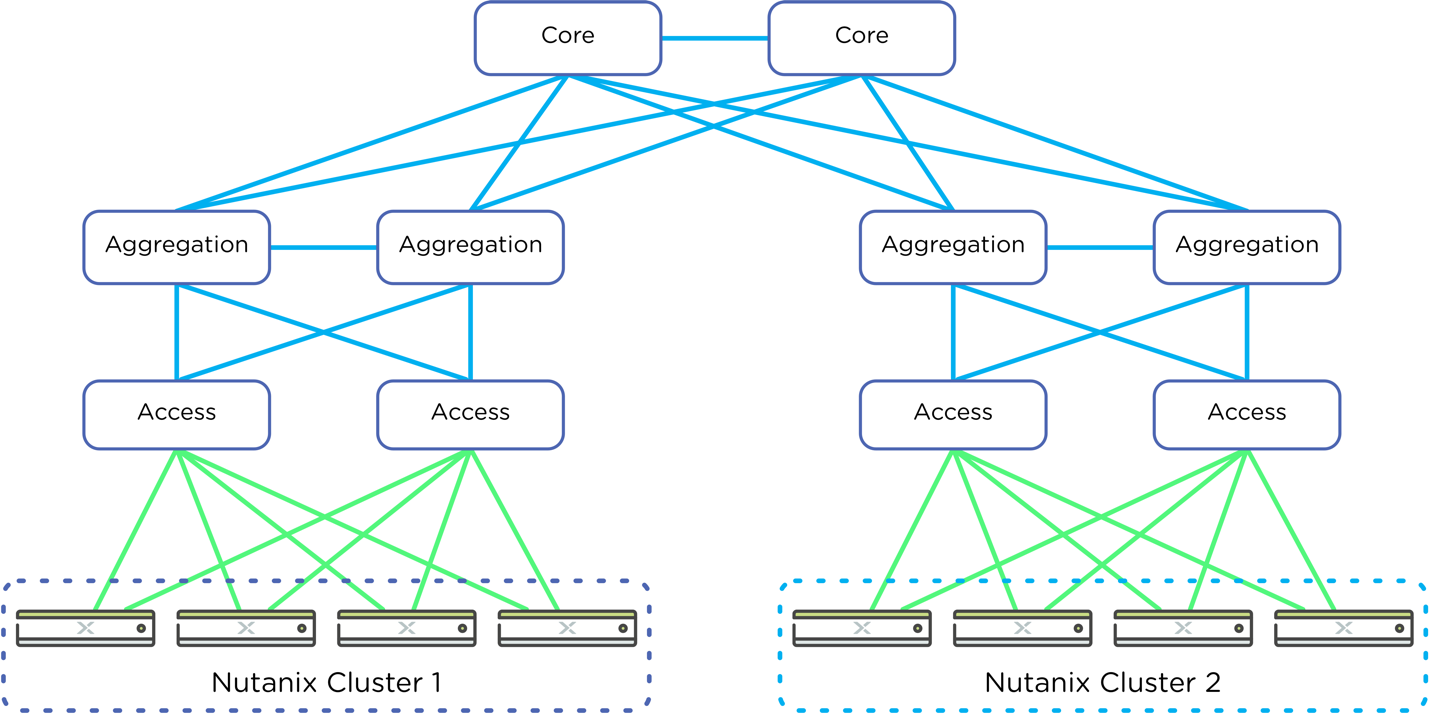

Expanding the three-tier network design might involve incorporating an additional aggregation and access layer into the core. Consequently, there may be an increase in the number of switch hops between the two access layers, exceeding the recommended limit of three. To maintain adherence to the guideline, it is advisable to allocate Nutanix nodes to separate aggregation and access layers, effectively separating them into distinct clusters. In the provided example, Cluster 1 connects to one aggregation layer, while Cluster 2 connects to a different aggregation layer.

Various methods exist for interconnecting switches within the three-tier design, resulting in potential variations in your deployment compared to the illustrated example.

Multisite Designs

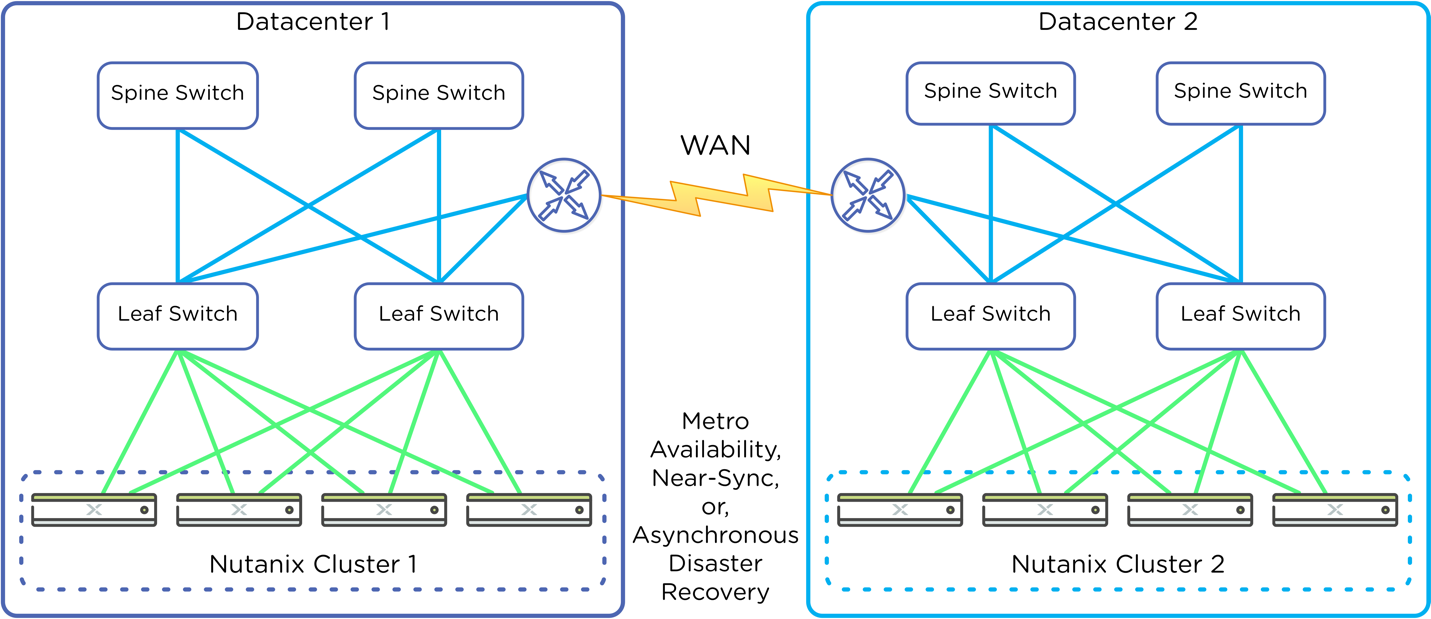

In scenarios where multiple physical sites or availability zones are present, it is not recommended to have a single Nutanix cluster spanning across them. Instead, the preferred approach is to establish multiple Nutanix clusters, with each cluster assigned to a specific availability zone. These clusters can be interconnected using tools such as asynchronous disaster recovery, NearSync, and Metro Availability. By adopting this design, data and applications can achieve high availability while mitigating the risk of a split-brain scenario, where a Nutanix cluster becomes partitioned due to loss of connectivity between the two sites.

Security and Reliability

Ensuring robust security and reliability is vital in data infrastructure. When integrating NVIDIA Networking and Nutanix HCI, organizations benefit from advanced security measures and enhanced reliability. Let's explore key aspects of security and reliability in this integrated solution:

a. Network Security Measures: NVIDIA Networking and Nutanix HCI provide network security measures to safeguard data, including firewalling, access control, encryption, and intrusion detection/prevention systems. Leveraging both solutions creates a secure network environment that protects sensitive data and mitigates vulnerabilities.

b. Secure Data Transfers: NVIDIA Networking's technologies, like RDMA and GPU Direct, ensure secure data transfers within the network. Combined with encryption protocols, they protect data in transit. Nutanix HCI offers data protection mechanisms like data-at-rest encryption and secure storage protocols, enabling secure end-to-end data transfers.

c. High Availability and Fault Tolerance: Nutanix HCI's distributed architecture provides high availability and fault tolerance. Leveraging NVIDIA Networking extends these capabilities to the network infrastructure, ensuring network resilience and minimizing downtime. This integration enhances system reliability and enables continuous operations.

d. Monitoring and Alerting: Nutanix HCI provides built-in monitoring capabilities for infrastructure performance and network health. Integrating NVIDIA Networking's monitoring features offers deeper insights into network-specific metrics, detects anomalies, and responds promptly to security threats or performance issues.

e. Compliance and Regulatory Requirements: NVIDIA Networking and Nutanix HCI assist organizations in meeting compliance and regulatory requirements. They provide audit logs, access controls, and encryption mechanisms, helping achieve compliance with industry standards like HIPAA, GDPR, or PCI DSS.

Conclusion

The integration of NVIDIA Networking and Nutanix HCI offers a powerful solution for optimizing data center infrastructure. Combining advanced networking technologies with hyperconverged architecture brings benefits in performance, scalability, virtualization, security, and reliability.

NVIDIA Networking enhances data transfer efficiency and system performance with RDMA and GPU Direct. Nutanix HCI simplifies infrastructure management, enables scalability, and efficient resource virtualization. Together, they maximize virtualized workloads, especially those with GPU acceleration and large data sets.

Careful planning, configuration, and optimization are necessary for seamless integration. Following best practices, conducting performance testing, and continuous monitoring ensure optimal outcomes and identify areas for improvement.

The integrated solution prioritizes security with network security measures, secure data transfers, and high availability. Compliance requirements and data protection are addressed through advanced security features of NVIDIA Networking and Nutanix HCI.
